Installation (PWS2-30K-EX)

Before delivery, each inverter is strictly checked and tested. To prevent any damage during transport, the case needs to be opened and checked before installation of energy storage inverter. The following should be checked:

1. Check whether the items in the packing list are consistent with the real objects.
2. Check whether the data (such as product model, rated capacity and voltage) on the product nameplate is consistent with purchase contract.
3. Check whether the ex-factory documents and accessories are complete.
4. Check whether the energy storage inverter is deformed and falls off paint.

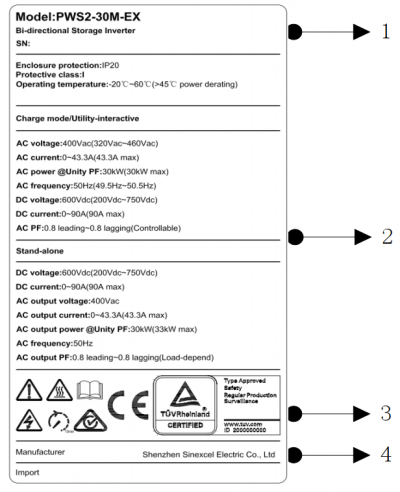

Before installation, please check inverter parameters. The nameplate in the side of PWS2-30M-EX contains inverter model, important technical parameters and certification marks, etc. Prepare operation tools (such as percussion drill, marker and cross screwdriver) in advance so that the energy storage inverter can be installed and wired smoothly. The nameplate label is shown as below.

The above picture is only for reference. Please refer to the real object. (1) Product model and serial number (2) Technical parameters of inverter (3) Precaution and Certification label (4) Manufacturer

• The inverter is designed for indoor use. Direct sunshine, rain and ponding should be avoided.
• The installation environment is clean. The air should not contain lots of dust.
• The installation should be conducted in a well-ventilated environment so as to ensure good heat dissipation.
• Air inlet and outlet should not be sheltered so as to make ventilation duct unblocked.
• Environment temperature should be -20~45℃ so as to ensure that the inverter has the best operation state. Over-high and over-low temperature will shorten the service life of inverter.

• The installation carrier of inverter should be fireproof.
• Do NOT install the inverter on the flammable construction materials.
• Please ensure that the installation surface is firm and meets the load bearing requirements for inverter installation.
